LVS/LVR - Stainless Steel Vertical Multistage Pump - (Download Catalogue)
Home >> Services
Working Conditions
- Low viscosity, non-inflammable and non-explosive liquids not containing solid particles or fibers. The liquids must not chemically attack the pump materials. When pumping liquids with a density or viscosity is higher than that of water, a motor with higher output power rating shall be used
- Liquid temperature: -20°C - +120°C
- Flow ranges: 0.7-120 M3
- Liquid pH value: 4-10
- Maximum ambient temperature: +40°C
- Maximum operation pressure: 33 bar
- Altitude: upto 1000 Meters
Features
- Flow Range: 0.7 - 240 M³/Hour
- Head Range: 10 - 323 m
- Power Range: 0.37 - 110 kW (0.37 - 150 HP)
- DN: 25 - 150 mm

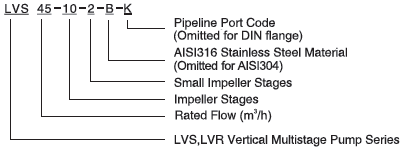

Identification Codes
Application
- Suitable for transferring liquid of low viscosity, non-inflammable and non-explosive, not containing solid particles or fibers
- Water supply & drainage for high-rise buildings, filteration and transfer at waterworks, pressure boosting in main pipe
- Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary system, support equipment
- Ultra-filteration systems, reverse-osmosis systems (RO Plant), distillation systems, seperators, swimming pools
- Agricultural irrigation: Sprinkler irrigation, drip-feed irrigation
- Food and beverage industry
- Fire-fighting system
Motor
- Totally enclosed & fan-cooled motor
- Protection class: IP55
- Standard voltage: 50Hz 1X220V/3X380V
