AMS - Stainless Steel Centrifugal Pump - (Download Catalogue)
Home >> Services
Motor
- C&U bearing
- Motor with copper winding
- built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IPX4
- Max ambient temperature: 40°C
Application
- Residential Applications : Applicable to household water supply, Drainage system for high-rise buildings
- Industrial Applications : equipment support, pipeline pressurization, garden watering vegitable greenhousewatering, fish farming and poultry raising, industrial and mining, water supply and drainage of enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc.
Pump
- AISI 304 pump body
- AISI 304 shaft
- Max. liquid temperature: +85 °C
- Altitude: up to 1000 meters

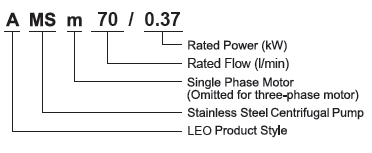

Identification Codes
Highlights
- Flow Range : 80 - 520 Liter/Minute
- Head Range : 15.4 - 30.4 Meters
- Power Range : 0.37 - 2.2 kW (0.4 - 3.0 HP)
- DN : 25 - 50 mm
