The Water Engineers...
Water Pumping Solution
Domestic Pumps
Borewell
Openwell Pumps
Constant™ Pressure boosting system
LRP - Circulation Pump - (Download Catalogue)
Home >> Services
Pump

  • Autometic pressure boosting
  • Anti-rust cast iron pump body
  • Noryl impeller with heat resistance up to 150°C
  • 99% alumina ceramic shaft
  • Liquid temperature: 2°C - 60°C
Features

  • Maximum flow: 183 Liter / Minute
  • Maximum head: 11.5 meters
  • Power Range: 34 -  270 W
  • DN : 15-32 MM

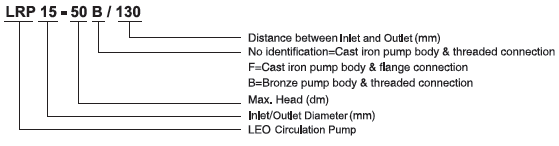

Identification Codes

Application

  • It is widely used for heating ventilating and air conditioning (HVAC) circulation, pressure boosting of hot water in homes, powered by solar energy, industrial auxiliary equipment cold and hot water circulation and so forth
  • Water circulation for the central and district heating system
  • Domestic hot water circulation

         SERVICES



         TECHNOLOGIES



         MARKET APPLICATIONS

Motor
  • Insulation class: H
  • Protection class: IP42
  • 99% alumina ceramic bearing
  • Copper winding
